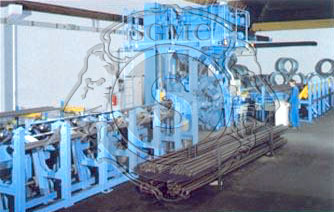

QB Series Shot Blasting Machine For Bar And Tube

Product info:
Feature：

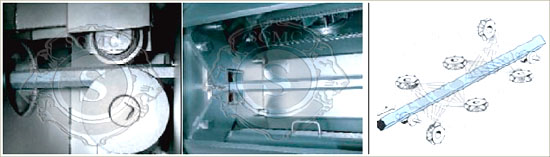

● Shotblast Turbines are equipment on the top of the machine.Campact construction and easy maintenance.
● Cleaning booth is equipped with high quality wear-resistant plates.
● V-type roller is titled bars are self-rotation homogeneous cleaning quality.
● Wide cleaning rang：Φ25～200
● Automatic material loading/unloading system is avaliable.

Technical Data
No	Model		QBK-100	QBK-200
1	Diameter of Bar	mm	Φ25～120	Φ50～200
2	Passage Speed	m/min	Max 70	Max 70
3	Center Height	mm	1100	1100
4	Impeller Motor Power	kW	22～30	22～30
5	Impeller Quantity		4	6
6	Required Air Ventalation	m3/h	6000	9000

Feature：

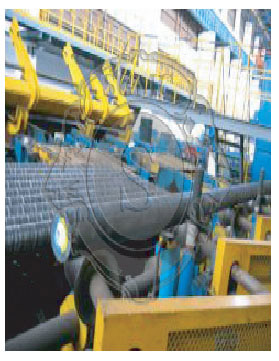

● The surface of commercially available bar of different shapes and cross sections (round、square、hexagonal or flat bars) can be uniformly descaled by shot blasting
● The shot blast turbines around on the cleaning booth .The parts canbe cleaned completely
● The blast housing is made of manganese hard steel and is equipped with wear plates.Ultra-long service life.
● Independent roll system ensure that the profile move stably.
● Compact design make it easy for the machine to join integrate into existing product line.
● Automatic material loading/unloading system is available.

Technical Data
NO	Model		QYK-100	QYK-200
1	Diameter of Profiled Bar	mm	25～120	50～200
2	Passage Speed	m/min	Max 60	Max 60
3	Central Height	mm	1100	1100
4	Impeller Motor Power	kW	22～30	22～30
5	Impeller Quantity		4	6
6	Required Air Ventalation	m3/h	6000	9000
