Q69 Series Shot Blasting Machin For Steel Plate

发布日期：2021-12-02 　浏览次数：1

Q69 Series Shot Blasting Machin For Steel Plate

Product info:

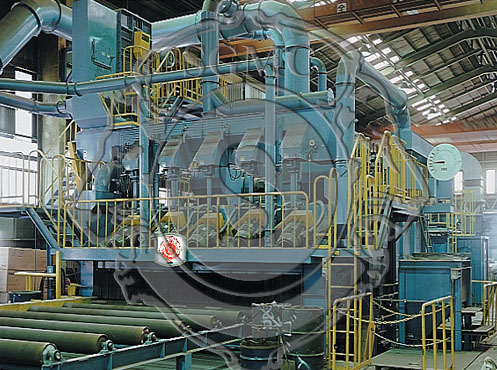

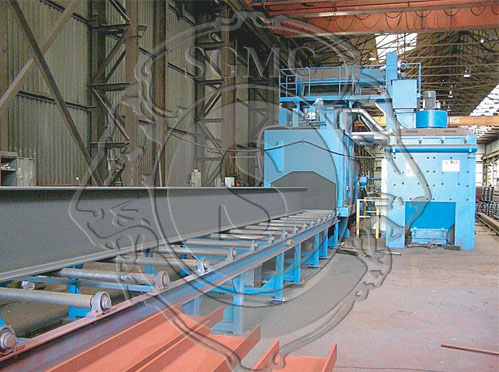

This shot blast cleaner is customized for the iron and steel industry wide and heavy plate pretreatment lines.It is an intergration of new mechanical、 electrical、 optical and pneumatically techniques and is highly automated stable safe energy and environmental protection.

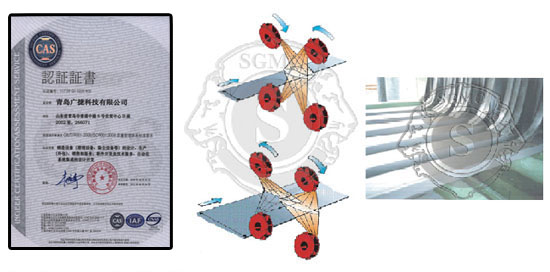

he shot blast turbine can shoot out the high speed shot and hit on the surface of the steel .It can remove the welding spatters and oxide layers from the surface consequently obtain a metallic luster with a fine and homogeneous finish.

Technical Data
No	Model		Q6908	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
1	Plate Width	mm	800	1200	1500	2000	2500	3000	4000
2	Feed Port Height	mm	300	300	600	600	800	800	400
3	Min.Part Size	mm	800	800	800	1500	1500	2000	2000
4	Max.Part Size	mm	12000	12000	12000	12000	12000	12000	12000
5	Passage Speed	m/min	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
6	cleaning plate Thickness	mm	5-120	5-120	5-200	5-200	5-300	5-300	5-300
7	Impeller Motor Power	kW	7.5-30	7.5-30	7.5-30	15-30	15-30	15-30	15-30
8	Impeller Quantity		4	4	4	6	6	6	8
9	Required Air Ventilation	m3/h	8500	17560	19000	19550	27750	28050	38000

Based in the profession many years we can provide the high quality and the high efficiency equipment for the customer. All machines we designed and manufactured were based on the lasted safety and environment protection standards.

Technical Data
No.	Model		Q6908	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
1	Plate Width	mm	800	1200	1500	2000	2500	3000	4000
2	Feed Port Height	mm	300	300	600	600	800	800	400
3	Min.Part Size	mm	800	800	800	1500	1500	2000	2000
4	Max. Part Size	mm	12000	12000	12000	12000	12000	12000	12000
5	Passage Speed	m/min	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
6	Plate Thichness	mm	5-120	5-120	5-200	5-200	5-300	5-300	5-300
7	Impeller Motor Power	kW	7.5-30	7.5-30	7.5-30	15-30	15-30	15-30	15-30
8	Impeller Quantity		4	4	4	6	6	6	8
9	Required Air Ventilation	m3/h	8500	17560	19000	19550	27750	28050	38000
